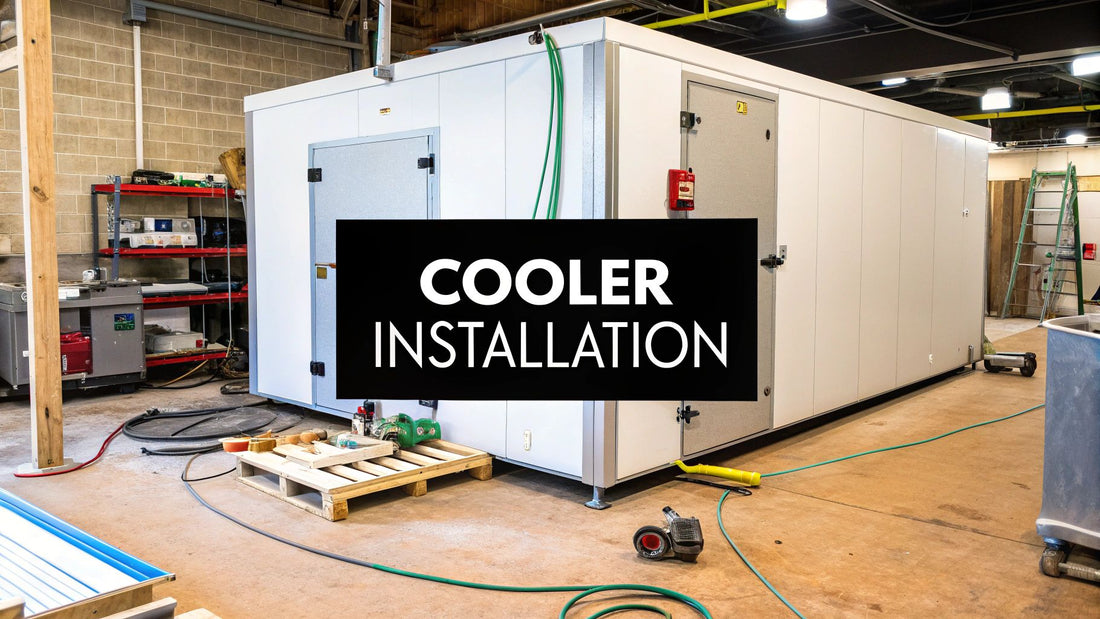

Walk In Cooler Installation A Practical Guide

Getting your walk in cooler installation right from the start is about more than just putting up four walls and a door. It's about building an efficient, rock-solid cold storage unit that won't give you headaches down the road. This isn't just a rehash of the instruction manual; it's a real-world guide to avoiding the common pitfalls I see all the time.

Your Blueprint for a Flawless Installation

A top-notch walk-in cooler installation is all about the prep work and the tiny details. Before you even think about picking up a tool, you need a solid game plan that covers everything from checking the site to firing up the system for the first time. Think of this guide as your roadmap to getting it done right.

We'll get into why a perfectly level foundation is non-negotiable for preventing door sag later on, and why taking the time to seal every single panel joint is your best defense against high energy bills. Every part of the process, from snapping panels together to the final refrigeration hookups, is critical for the cooler's performance and how long it'll last.

Understanding the Big Picture

One of the biggest mistakes people make is treating a walk-in install like a simple construction job. It's not. It’s a specialized project that combines construction with electrical work and refrigeration expertise. Winging it is a recipe for disaster, leading to small oversights that turn into major problems.

Before you start, nail down these key points:

• Site Viability: Is the spot you picked actually going to work? You need a level floor, enough space for the condenser to breathe, and easy access for running electrical and drain lines.
• Code Compliance: Have you looked up the local health and building codes? Different towns have different rules for things like floor drains, interior finishes, or even emergency lighting. Don't get caught by surprise.
• Power Requirements: Does your electrical panel have enough juice? You need to know how to calculate power consumption to make sure you have the right-sized circuit ready to go.

The Growing Need for Cold Storage

It’s no secret that the demand for good cold storage is skyrocketing. From restaurants and breweries to healthcare and logistics, everyone needs reliable coolers. The global market for walk-in coolers and freezers was recently valued at around USD 9 billion and is expected to hit USD 25 billion by 2030. That’s a steady growth rate of about 6% to 7% a year.

A truly professional installation is defined by what you don't see—perfectly sealed joints, a level foundation, and clean electrical work. These hidden details are what ensure optimal performance and prevent costly energy waste over the unit's lifespan.

This guide will walk you through all the make-or-break steps, focusing on the details that separate a basic setup from a professional-grade one. My goal is to give you the insights you need to make sure your investment works perfectly from day one.

Laying the Groundwork for Your Cooler

Before you even think about unboxing a single panel, the real work on your walk in cooler installation has already begun. The prep work you do now sets the stage for everything that follows. This isn't just about clearing a spot on the floor; it's about smart planning to avoid all-too-common headaches like panel gaps, poor cooling, and doors that just won't seal right.

First things first: picking the right location. You obviously need the square footage for the cooler itself, but don't forget its surroundings. The condensing unit—the heart of the whole system—needs plenty of room to breathe and push out heat. Shoving it in a tight, unventilated corner is a surefire way to get sky-high energy bills and a system that dies an early death.

You'll also want to map out your utility access. Thinking ahead about how you'll run electrical lines and plumbing for the condensate drain will save a world of hurt (and money) down the line.

The Critical Role of a Level Foundation

If there's one thing you absolutely cannot compromise on, it's a perfectly level floor. A foundation that’s even slightly off-kilter will throw the entire panel alignment out of whack. This puts a ton of stress on the cam-lock system and makes getting an airtight seal nearly impossible, leading to leaks, moisture, and a cooler that's constantly fighting to stay cold.

As you check out your floor, keep these points in mind:

• Concrete Pads: A dedicated concrete pad is your best bet. It gives you a solid, stable surface you can pour to be perfectly level. If you're working with an existing slab, grab a long level or a laser to hunt down any dips or high spots that need fixing.
• Insulated Flooring Systems: For walk-in freezers, an insulated floor is non-negotiable. It stops the subfloor from freezing over, which can cause the ground to heave and crack your concrete slab—a truly catastrophic failure.
• Weight Capacity: Is your floor up to the task? A fully stocked walk-in is incredibly heavy. You have to be certain the floor's structure can support the total weight of the unit, all its contents, and the people walking in and out.

The level of your foundation directly impacts every single step that comes after. A quarter-inch discrepancy on the floor can easily become a massive gap up at the ceiling, killing your cooler's thermal efficiency.

Navigating Building Codes and Kitchen Layout

Here's a step people often skip: checking in with your local building and health departments before you start. Regulations can dictate everything from floor drains and interior finishes to the specific type of lighting you need to install. Ignoring them now can mean failed inspections and expensive rework later.

Placement is also about workflow. Your cooler's location needs to make sense for your day-to-day operations. When you integrate your new cold storage into a smart kitchen plan, you cut down on wasted steps for your staff and streamline the entire process, from delivery to prep. For more on this, check out our guide on commercial kitchen layout planning to really dial in your space.

Ultimately, getting this prep phase right is your chance to guarantee a successful project. By carefully picking a spot with good ventilation, ensuring you have a rock-solid and level foundation, and staying on the right side of local codes, you're building the perfect conditions for a smooth installation. A little extra time spent here ensures your walk-in cooler will be a reliable workhorse for years.

Assembling Panels for an Airtight Seal

Once your foundation is solid, it's time to bring the cooler to life. This is where you start assembling the insulated panels to create that sturdy, airtight box. Getting this part right is the difference between an energy-efficient cooler and a power-hungry one that bleeds cold air and money.

First things first, carefully unpack and inspect every panel. You're looking for any dings, dents, or crushed corners from shipping that could mess up your seal. After giving them the all-clear, lay them out following the manufacturer's diagram. Most systems are designed to be built in a specific order, usually starting with a corner wall panel and building out from there.

This infographic breaks down the key steps our installation teams follow, giving you a great visual for how the whole process comes together.

As you can see, it’s a systematic approach. From placing that first panel to the final sealing touches, every step is crucial for a walk-in cooler that’s structurally sound and efficient.

Mastering the Cam-Lock System

The secret to modern walk-in coolers is the cam-lock system. These are basically hook-and-pin mechanisms built right into the panel edges. When you turn them with a special wrench, they pull the panels together with incredible force, creating a super-tight, compressed seam. This is what primarily holds your whole cooler together.

To get them to work right, always start with the cam-locks fully open. You can do this by turning the wrench counterclockwise until it stops. As you bring two panels together, make sure they’re perfectly flush at the top. Run your hand over the seam—it should feel smooth, not like one panel is higher than the other. Even a tiny misalignment can strain the locks and leave gaps.

Once everything is lined up, turn the wrench clockwise to engage the locks. You'll feel them catch and then tighten up. A good rule of thumb is to lock them in sequence, starting from the top and working down to apply even pressure along the entire joint.

If a cam-lock feels stuck or just won't engage, don't force it. Back it off, double-check that the panels are perfectly level, and peek inside to make sure there's no debris in the mechanism. Sometimes, all it needs is to be reset to the fully open position.

Sealing Joints for Maximum Efficiency

While cam-locks give you the structure, the sealant is what makes it truly airtight. Rushing or skipping this step is one of the biggest—and costliest—mistakes you can make. Every single joint needs a continuous bead of sealant to stop air from getting in or out. This includes wall-to-wall, wall-to-ceiling, and wall-to-floor connections.

You'll typically work with a couple of key sealant types:

• Butyl Caulk: This is a very flexible, waterproof sealant that you often apply inside the panel grooves before locking them together. A continuous 3/8-inch bead on the "warm side" of the groove is the standard.
• NSF-Certified Silicone: After the panels are locked tight, you'll go back and apply a bead of food-grade silicone to the interior seams. This creates a smooth, easy-to-clean surface and seals any tiny gaps the cam-locks might have missed.

Applying silicone neatly takes a bit of practice. Start at the top of a joint and lay a consistent bead all the way down. To get that professional, clean finish, use a specialized tool or even the rounded back of an old silicone tube to smooth the bead, scooping the excess out from the bottom up. This technique really forces the silicone deep into the joint for a perfect seal.

Installing the Door for a Perfect Swing

The door is the only moving part on your cooler, so it needs extra attention. A poorly installed door is a huge energy waster. The first step is to make sure the door frame panel itself is perfectly plumb and square. Grab a level to check it vertically, then take diagonal measurements from corner to corner—the two numbers should be identical.

With the frame secure, you can hang the door on its hinges. The goal is a smooth swing with zero binding or dragging on the floor. Most hinges have built-in adjustments to help you get the alignment just right.

After hanging the door, it’s all about the final tweaks:

1. Adjust the Door Sweep: The sweep at the bottom of the door needs to create a solid seal against the threshold. It should be firm, but not so tight that it drags. You can usually adjust it up or down by loosening a few screws.
2. Set the Door Closer: Adjust the closer so it shuts the door firmly from any position without slamming it. You want it to close completely every time.
3. Install the Safety Release: This is a non-negotiable safety feature. The internal safety release has to be installed and tested to make sure anyone inside can get out, even if the door is locked from the outside.

Taking your time to assemble, seal, and adjust every piece is what guarantees your walk-in cooler will be efficient and reliable for years to come.

Connecting the Refrigeration System

Now that your walk-in box is sealed up tight, it's time to bring it to life by installing its heart: the refrigeration system. This isn't just a component; it's the engine that powers the entire operation. Getting this stage of the walk in cooler installation right is absolutely critical for performance, energy costs, and how long your equipment will last. This means correctly placing the main components, running the refrigerant lines, and running a few crucial tests before you flip the switch.

Your walk-in uses a split system, which simply means it has two major parts. You have the condensing unit, which usually lives outside the cooler to get rid of heat, and the evaporator unit, which sits inside and soaks up heat to cool everything down. Connecting these two is a job that demands real precision.

Placing the Condensing and Evaporator Units

You’d be surprised how much the placement of these two units affects how well your cooler works. The condensing unit needs a steady diet of fresh, cool air so it can efficiently dump the heat it's pulled from inside. If you stick it in a cramped, stuffy room, you're forcing it to work overtime, which means higher energy bills and a much shorter lifespan.

For the best results, you'll want to position the condensing unit:

• Outdoors or in a room with great ventilation: The name of the game is airflow. A spot on the roof or an open area alongside the building is perfect.
• Out of direct sunlight: Constant sun beating down on the unit heats it up, tanking its efficiency. Try to place it on a north-facing wall or under an awning if you can.
• Clear of any obstructions: Make sure there are several feet of open space around the unit for air to move freely. You definitely want to avoid putting it near things like dryer vents or exhaust fans that pump out hot air.

Back inside the cooler, the evaporator unit is in charge of blowing cold air. Where you hang it determines how evenly that cold air gets spread around. The goal is to mount it where it has a clear shot to circulate air across the whole space, eliminating any potential "hot spots." This usually means mounting it high up on a wall, far from the door, and in a spot where it won't be blocked by tall shelving or stacks of product.

Pro Tip: Always, always follow the manufacturer's clearance specs when you mount the evaporator. This gives the unit enough breathing room to pull in air and circulate it properly. An evaporator that's too close to the ceiling or a wall can lead to wildly inconsistent temperatures and spoiled food.

We've put together a quick checklist to help you nail the placement of these critical components.

Refrigeration Component Placement Checklist

Thinking through where each part goes ahead of time can save you major headaches down the road. This table breaks down the ideal spots and common pitfalls for the main refrigeration components.

Component	Optimal Location	Key Installation Consideration	Common Mistake to Avoid
Condensing Unit	Outdoors, rooftop, or well-ventilated mechanical room.	Ensure 3-5 feet of clearance for airflow on all sides.	Placing it in a small, unventilated closet or near a heat source.
Evaporator Unit	High on an interior wall, away from the door.	Mount for unobstructed airflow across the entire box.	Installing it too close to the ceiling or directly above the door.
Refrigerant Lines	Shortest, most direct route between condenser and evaporator.	Seal all wall penetrations with expanding foam or silicone.	Creating low spots (traps) where oil can collect in the line set.
Thermostat	Inside, near the door at eye level.	Place away from the direct airflow of the evaporator fan.	Mounting it on a back wall where it won't accurately read the box temp.

Getting these locations right from the start is half the battle won for an efficient, long-lasting system.

Running and Brazing the Refrigerant Lines

Connecting the condenser and evaporator are the copper refrigerant lines, often called the "line set." This is a pair of tubes: a smaller liquid line and a larger, insulated suction line. To run them, you'll need to drill holes through the walk-in panel and possibly an exterior wall. Always use a proper hole saw for a clean cut and be sure to seal those openings thoroughly with silicone to keep your box airtight.

With the lines in place, they need to be permanently joined using a process called brazing. This isn't like regular soldering—brazing uses much higher heat and a silver-based alloy to create a super-strong bond that can handle the intense pressures inside a refrigeration system. This is one of those jobs where experience really counts. A weak braze joint will eventually leak refrigerant, leading to expensive repairs and environmental harm.

Insulating, Testing, and Final Connections

After the joints are brazed, the entire length of the larger suction line must be wrapped in foam insulation. This is a critical step that prevents condensation ("sweating") on the line and, more importantly, stops it from absorbing ambient heat as the cool refrigerant makes its way back to the condenser. Don't skip this; it's a huge factor in system efficiency.

Before you can even think about adding refrigerant, you have to perform a nitrogen pressure test. This is a non-negotiable step to make sure your brazed joints are perfect. The system is filled with high-pressure, dry nitrogen and left to sit for a few hours, sometimes even overnight. You watch the pressure gauge like a hawk—any drop means you have a leak that needs to be found and fixed.

The thermostat is the last piece to install. It should be mounted inside the cooler near the door at a height where it's easy to see and adjust. Think of it as the system's brain; it tells the condenser when to kick on and off to hold the temperature you've set.

The market for this equipment is growing fast, with the U.S. commercial walk-in refrigeration market projected to hit USD 2.2 billion by 2035. This push is fueled by stricter energy codes, which means more efficient parts and makes every step of the installation process more important than ever. You can learn more about trends in the U.S. commercial refrigeration market.

Hooking up the refrigeration system is a detailed job, but it’s one part of a bigger picture. Knowing all the components of your cold storage, including the main commercial refrigerator unit, helps you run a more efficient and reliable kitchen.

Finalizing Electrical and System Startup

With the box built and the refrigeration lines run, it's time for the final push: bringing your new walk-in cooler to life. This last stage is all about the critical electrical work and a careful, step-by-step startup process we call commissioning. Even though this part of the job absolutely requires a pro, understanding what's happening will help you know it's being done right.

The electrical hookup is easily the most dangerous part of the whole installation, which is why it’s strictly a job for a licensed electrician. Your walk-in's condenser and evaporator fans are heavy-duty equipment; you can't just plug them into a standard wall outlet. They pull a serious amount of power and need their own dedicated circuits to avoid constantly tripping breakers or, worse, creating a fire hazard.

An electrician will make sure the power supply is properly sized for your specific unit, which means running the correct wiring straight from your main electrical panel to the cooler’s components.

Ensuring Safe and Sufficient Power

Using the right wire gauge is completely non-negotiable for a safe electrical system. The gauge—basically, the thickness of the wire—dictates how much electrical current it can handle safely. If a wire is too thin for the amperage your cooler demands, it'll overheat and become a major fire risk. A solid understanding of appropriate wire gauges for the required amperage is crucial for a safe and efficient setup.

Your electrician will cross-reference the manufacturer’s specs with local electrical codes to pick the perfect wire. This kind of attention to detail is what separates a professional job from a potential problem, ensuring your system runs safely for years.

The Commissioning Process Unpacked

Once the wiring is done and double-checked, the HVAC/R technician takes over for commissioning. This isn't just about flipping a switch; it's a methodical process to get the system ready. The very first—and most vital—step is to pull a deep vacuum on the refrigerant lines.

A special vacuum pump gets hooked up to the line set and is left to run for a good while, sometimes for several hours. Its only job is to suck out every last bit of air and, more importantly, any moisture from inside the copper tubing.

Leaving even a tiny amount of moisture in the system is a recipe for disaster. It can mix with the refrigerant to form corrosive acids that will literally eat your compressor from the inside out. This vacuum process is the single best insurance policy for a long, trouble-free life for your refrigeration system.

Charging and Testing the System

After achieving a perfect vacuum, the technician can finally charge the system with refrigerant. This is another task that demands precision. The manufacturer specifies the exact amount of refrigerant needed, measured by weight. Putting in too much or too little will tank the system's efficiency and can lead to serious mechanical failure.

As the cooler powers up for the very first time, the technician will be watching it like a hawk, checking a few key performance metrics:

• System Pressures: Gauges get hooked up to read the suction and discharge pressures, giving a real-time snapshot of the system's health.
• Temperature Drop: They’ll measure the air temperature going into and coming out of the evaporator to confirm it's actually cooling effectively.
• Compressor Cycling: The tech makes sure the compressor is kicking on and off when it's supposed to, listening for the cues that it's responding to the thermostat correctly.

This final check-up is the last piece of the puzzle. It's the confirmation that every component is working in harmony and that your new walk-in cooler is officially open for business. The global retail cooler market, which includes walk-ins, is expected to grow with a CAGR of around 9.8% from 2025 to 2030, a trend fueled by the demand for better efficiency and safety. You can get more insights on these market trends on internationalcoolers.com. A properly commissioned system means you're meeting those modern standards right from day one.

Choosing Your Stainless Steel Prep Tables

Now that your walk in cooler installation is complete, it’s time to outfit the surrounding workspace. Stainless steel prep tables are the undisputed champion in any professional kitchen, prized for their durability, longevity, and ease of sanitation. Understanding the different types available helps you create a more efficient workflow.

Your most versatile option is a standard stainless steel work table. These provide a simple, flat surface perfect for general prep, plating, or housing countertop equipment. They are available with or without a backsplash to protect walls and often feature an undershelf for extra storage, making them a true kitchen workhorse.

Specialized Prep Tables for Peak Efficiency

To significantly boost your kitchen's speed and organization, consider specialized refrigerated prep tables that integrate cold storage directly into the workspace.

• Sandwich Prep Tables: These are game-changers for delis, cafes, and restaurants. They combine a cutting board work surface with refrigerated wells on top for holding meats, cheeses, vegetables, and condiments. Below, a refrigerated cabinet provides bulk storage, keeping everything you need for assembly within arm's reach.
• Pizza Prep Tables: Built on a similar principle, these units are designed specifically for pizzerias. They feature a wide, refrigerated rail on top that can accommodate numerous ingredient pans for toppings. The work surface is typically deeper to provide ample space for stretching and saucing dough, while the refrigerated base holds extra dough boxes and ingredients.

A well-chosen prep table isn't just a surface; it's a strategic tool. Placing a refrigerated prep table directly outside your new walk-in cooler can slash prep times and drastically improve your kitchen's overall workflow.

When selecting any table, pay attention to the steel gauge—a lower number means thicker, more durable steel. Consider features like backsplashes, undershelves, and casters for mobility to find the perfect fit for your operational needs. If you want to get into the nitty-gritty of what separates a good table from a great one, you can explore the key features of a stainless steel prep table in our more detailed guide.

Common Installation Questions Answered

Even the most buttoned-up installation plan can hit a snag. A walk-in cooler installation is a big job with plenty of moving parts, so it's only natural for questions to come up along the way. We’ve pulled together some of the most common issues that people run into, with practical answers to get you back on track.

Think of this as your field guide for those moments you need a quick, clear solution. Getting these things right from the start can save you a world of headaches and ensure your new cooler runs like a dream.

Can I Install a Walk-In Cooler on an Existing Concrete Floor?

You absolutely can, but there are two big "ifs" you have to check first. One, the floor must be perfectly level. Two, it needs to be strong enough to handle the crushing weight of the cooler and everything you plan to store inside it. A floor that isn't level is a deal-breaker—it guarantees you’ll have problems with panel alignment, doors that don't seal, and unnecessary stress on the whole structure.

Before you even think about laying down the first panel, grab a long level or a laser and check the slab from every angle. If you find any major dips or cracks, they have to be patched and leveled before you can move forward.

When it comes to walk-in freezers, the game changes. An insulated floor is pretty much mandatory. Without it, the sub-zero temperature will eventually freeze the ground under your concrete, causing it to heave up and crack the foundation. That’s a catastrophic failure you don't want to deal with.

Do I Need a Professional for the Entire Installation?

This is a classic question, and the answer is a little of both. Assembling the insulated panels themselves is often manageable for a skilled contractor or a handy, experienced team. The cam-lock systems are designed to go together fairly simply if you follow the manufacturer's layout.

However, a couple of key steps are completely non-negotiable and must be handled by licensed professionals:

1. Refrigeration Work: You'll need an HVAC/R technician to braze the copper lines, run a nitrogen pressure test, pull a vacuum, and charge the system. This is highly specialized work requiring specific certifications, tools, and know-how.
2. Electrical Connections: A licensed electrician is the only person who should be running dedicated circuits and wiring the condensing unit and evaporator fans. This isn't just about safety; it’s about making sure you’re compliant with local electrical codes.

Trying to tackle the refrigeration or electrical work yourself is not only dangerous, but it's also a surefire way to void your warranty.

Where Is the Best Place to Locate the Condensing Unit?

Where you put the condensing unit makes a huge difference in how well it runs and how long it lasts. The sweet spot is outdoors, in a shaded spot that gets plenty of fresh air from all sides. This allows the unit to shed heat easily, boosting its performance and keeping your energy bills in check.

A few places to absolutely avoid? Don't stick it in a small, enclosed closet where it will quickly overheat. Keep it off a sun-baked rooftop if you can, and make sure it’s far away from any heat sources like dryer vents or kitchen exhaust fans. Anything that makes the unit work harder will just lead to higher bills and a shorter lifespan. A little forethought here really pays off.

---
